Mini HitBox SallyBox LED Light SOCD Fighting Stick Controller WASD Mixbox Mechanical Switches Support PC Xinput PS3 DInput Turbo

Mini HitBox SallyBox LED Light SOCD Fighting Stick Controller WASD Mixbox Mechanical Switches Support PC Xinput PS3 DInput Turbo

Regular price $126.99
Regular price $129.99 Sale price $126.99
Sale Sold out
Shipping calculated at checkout.
Switches in Default
Caps Colors

Mini HitBox SallyBox LED Light SOCD Fighting Stick Controller WASD Mixbox Mechanical Switches Support PC Xinput PS3 DInput Turbo

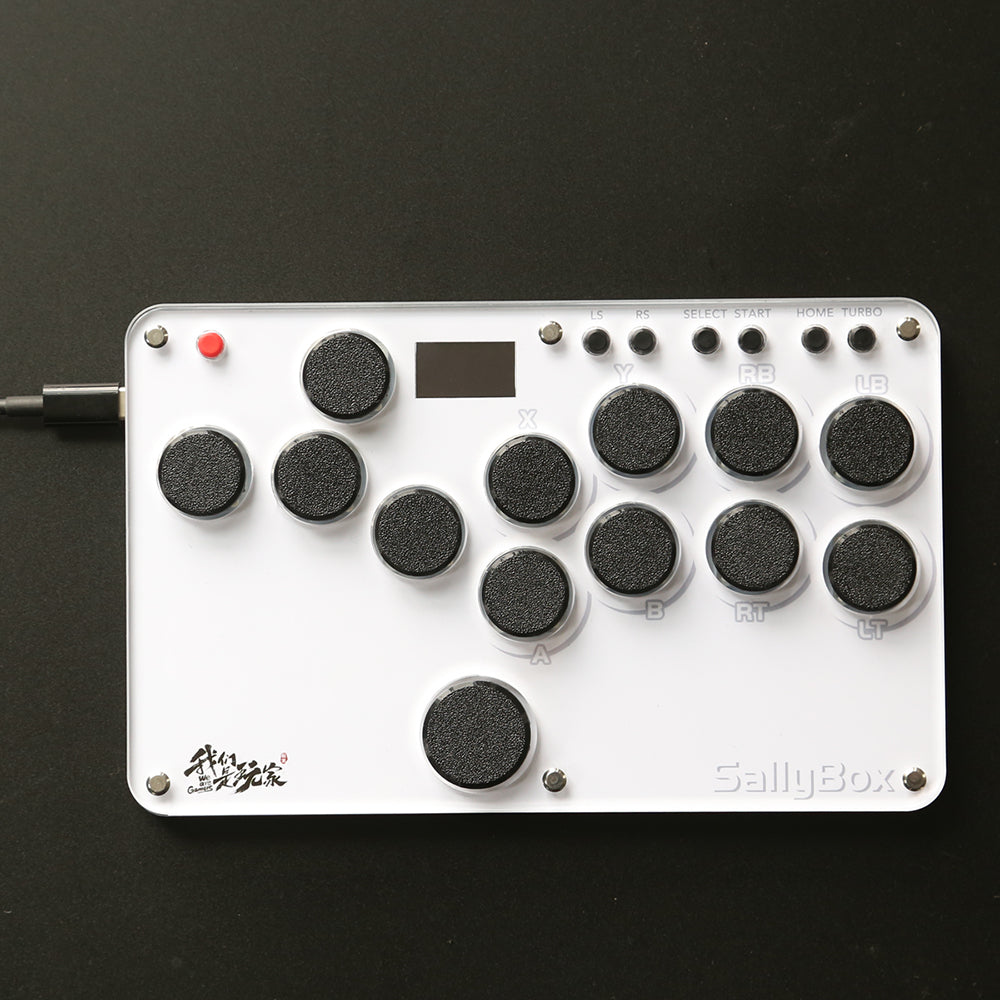

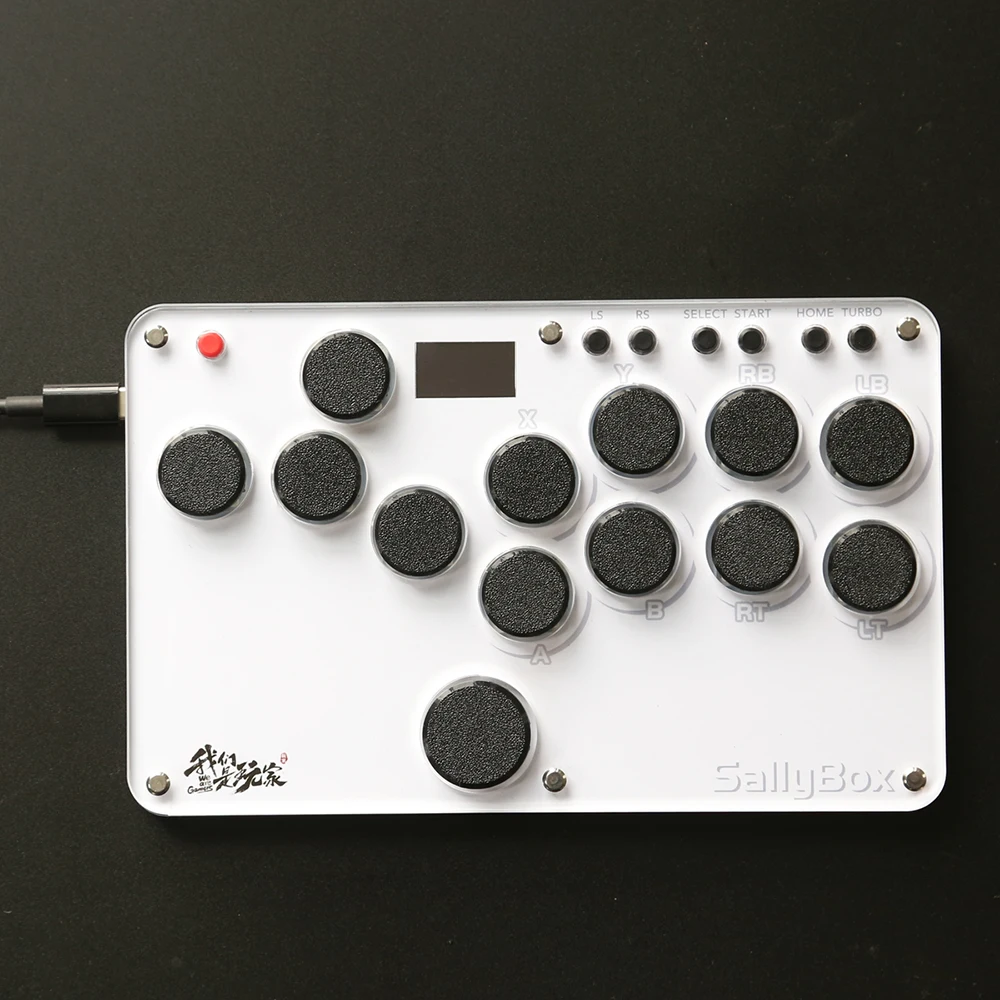

The Fight Box is a unique controller not only because it allows you to input SOCDs, but it also gives you the the ability to switch among many SOCD Resolutions. The FightBox has 4pcs Mechanical key and 1 Mechanical key on the left side of the controller, instead of the traditional analog joystick, with 8pcs Mechanical Keyboard for the action buttons on the right side of the controller, also have WASD Layout. The FightBox is compatible with PC/Android by using Zero Delay Arcade USB Encoder with SOCD Supported.

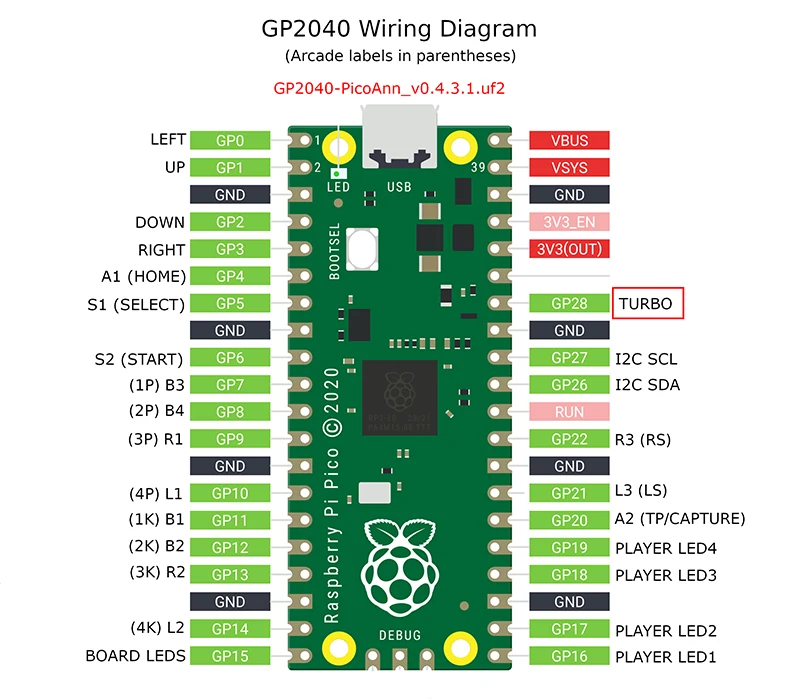

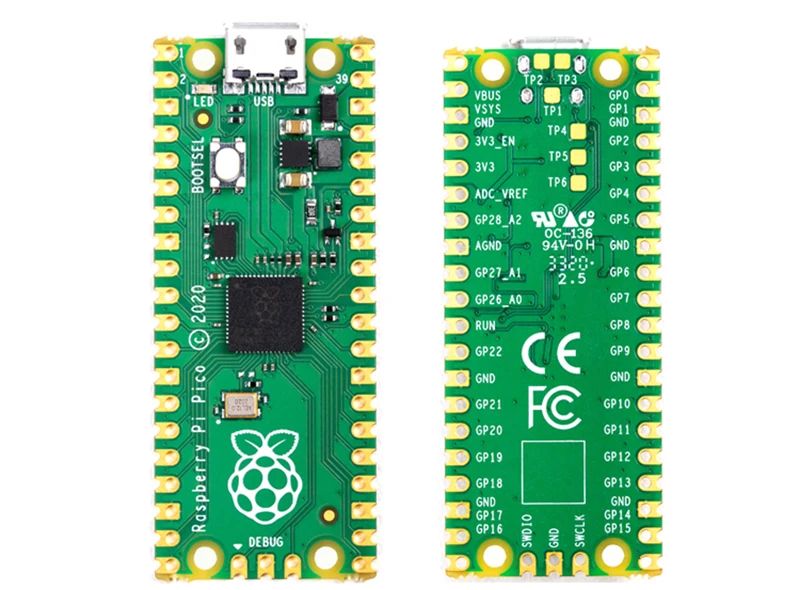

About Raspberry Pi Pico

Raspberry Pi Pico is a tiny, fast, and versatile board built using GP2040, a brand new microcontroller chip designed by Raspberry Pi in the UK.

Technical Specification

Raspberry Pi Pico is a low-cost, high-performance microcontroller board with flexible digital interfaces. Key features include:

*RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
*Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz
*264KB of SRAM, and 2MB of on-board Flash memory
*Castellated module allows soldering direct to carrier boards
*USB 1.1 with device and host support
*Low-power sleep and dormant modes
*Drag-and-drop programming using mass storage over USB
*26 × multi-function GPIO pins
*2 × SPI, 2 × I2C, 2 × UART, 3 × 12-bit ADC, 16 × controllable PWM channels
*Accurate clock and timer on-chip
*Temperature sensor
*Accelerated floating-point libraries on-chip
*8 × Programmable I/O (PIO) state machines for custom peripheral support

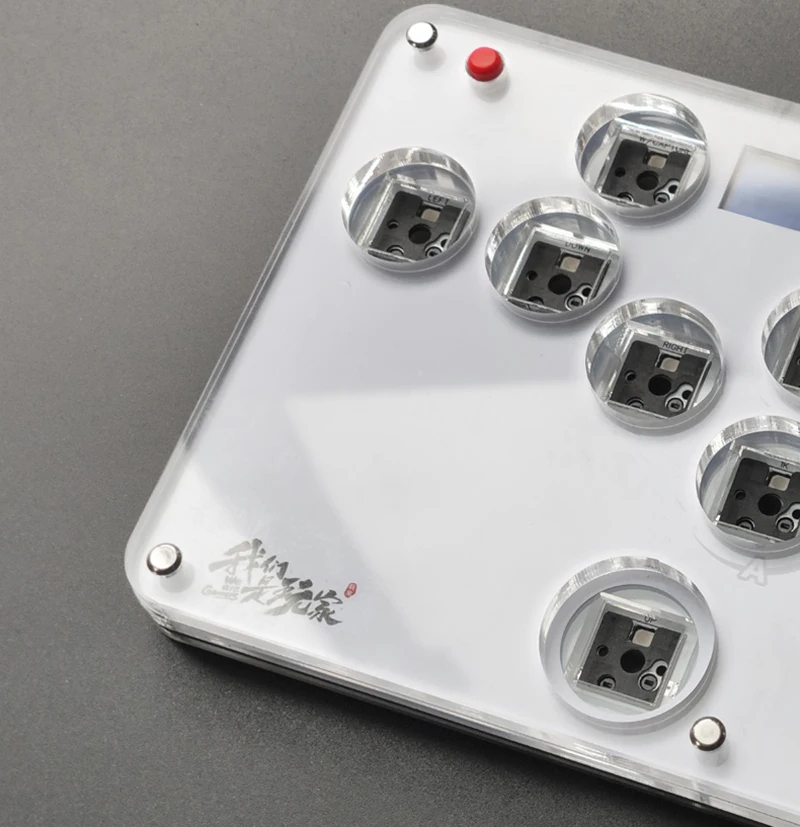

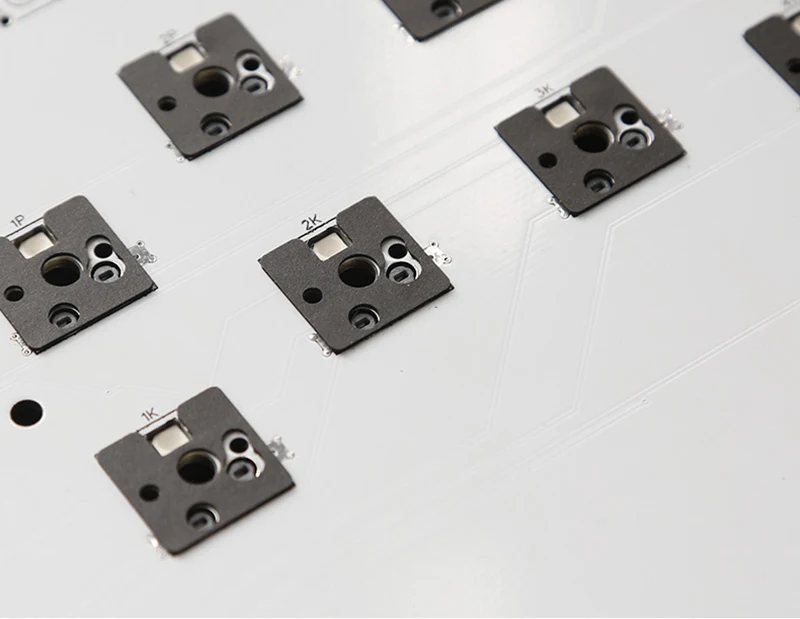

Hot Swappable Switches

For most 90% switches in the market. Compatile with 3pin and 5 pin switches.

Each switches are equiped with silent pad. Make your unique SallyBox.

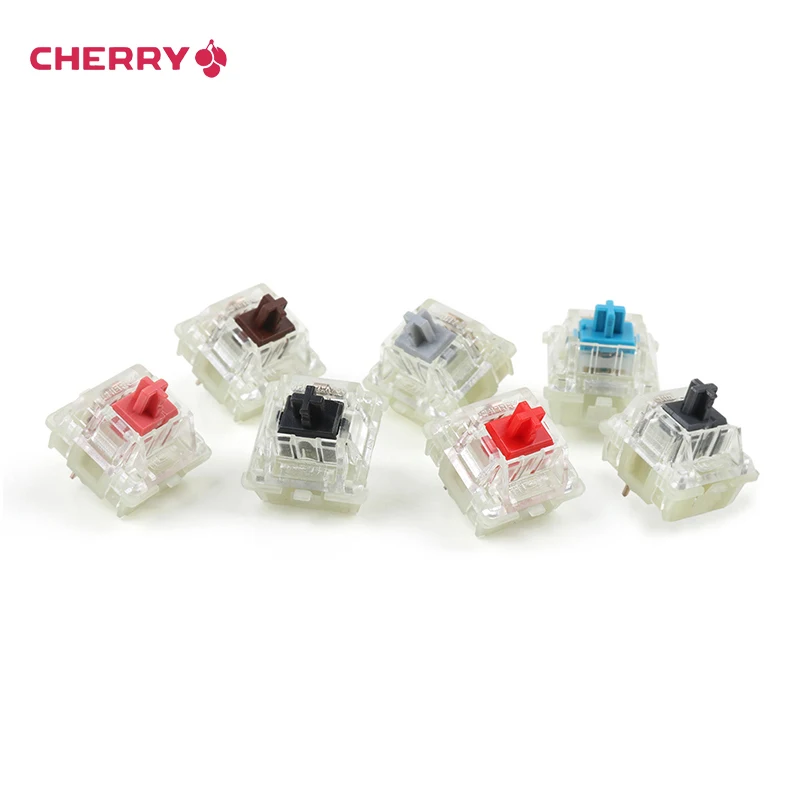

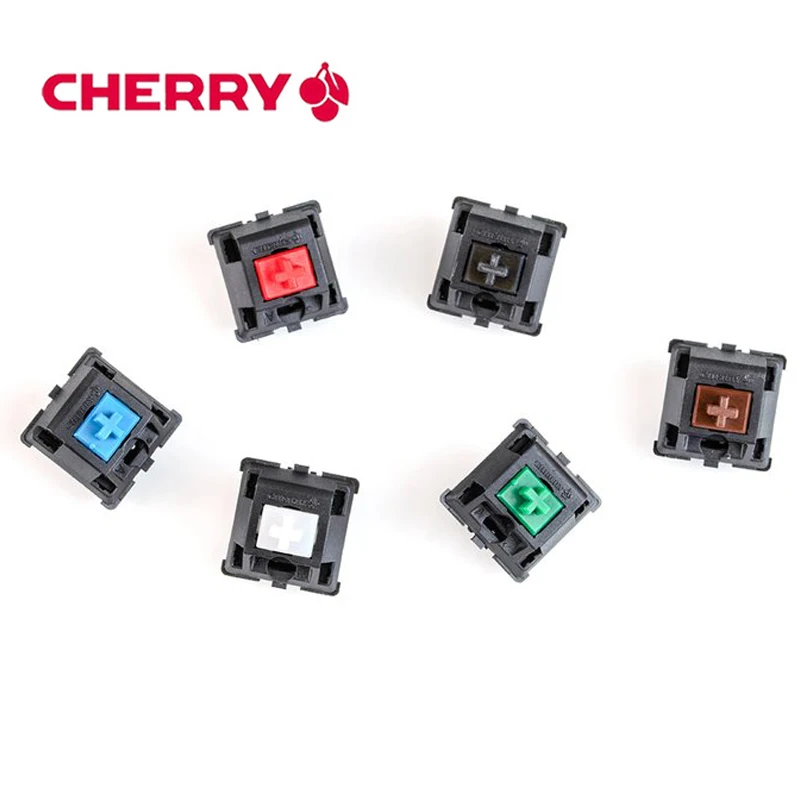

Cherry MX Silver Switch

We use Cherry MX Sliver Switches in the mechanical buttons of this mini hitbox. They are relatively light (close to sanwa in feel) and have a soft bump above the actuation point, which makes things somewhat tricky as you may think you have activated the button upon the tactile feel, but you actually have to travel a tad farther from the bump to actuate the switch.

GLORIOUS PANDA TACTILE SWITCHES

A premium tactile switch for a transcendent typing experience.

The Glorious Panda is no ordinary mechanical keyboard switch. Created from the original INVYR Panda housing molds with improved internals and upgraded materials, the GP unlocks a transcendent tactile typing experience, unlike anything your fingers have ever enjoyed.

Engineered with the most premium materials sourced from around the world, this switch features buttery-smooth operation, perfectly tactile response, and a sweet-sounding “thock” like a song from the heavens.

The feeling of Glorious Pandas could be described as a very snappy and responsive tactile switch. They feature a strong 'bump' at the start of the downstroke with a quick snap back to the position in the upstroke. You'll notice less pre-travel, smoother operation, and a quicker snap back than its "holy" cousin.

Once you try it, your fingers won't be able to get enough.

The Glorious Panda is uncompromised quality.

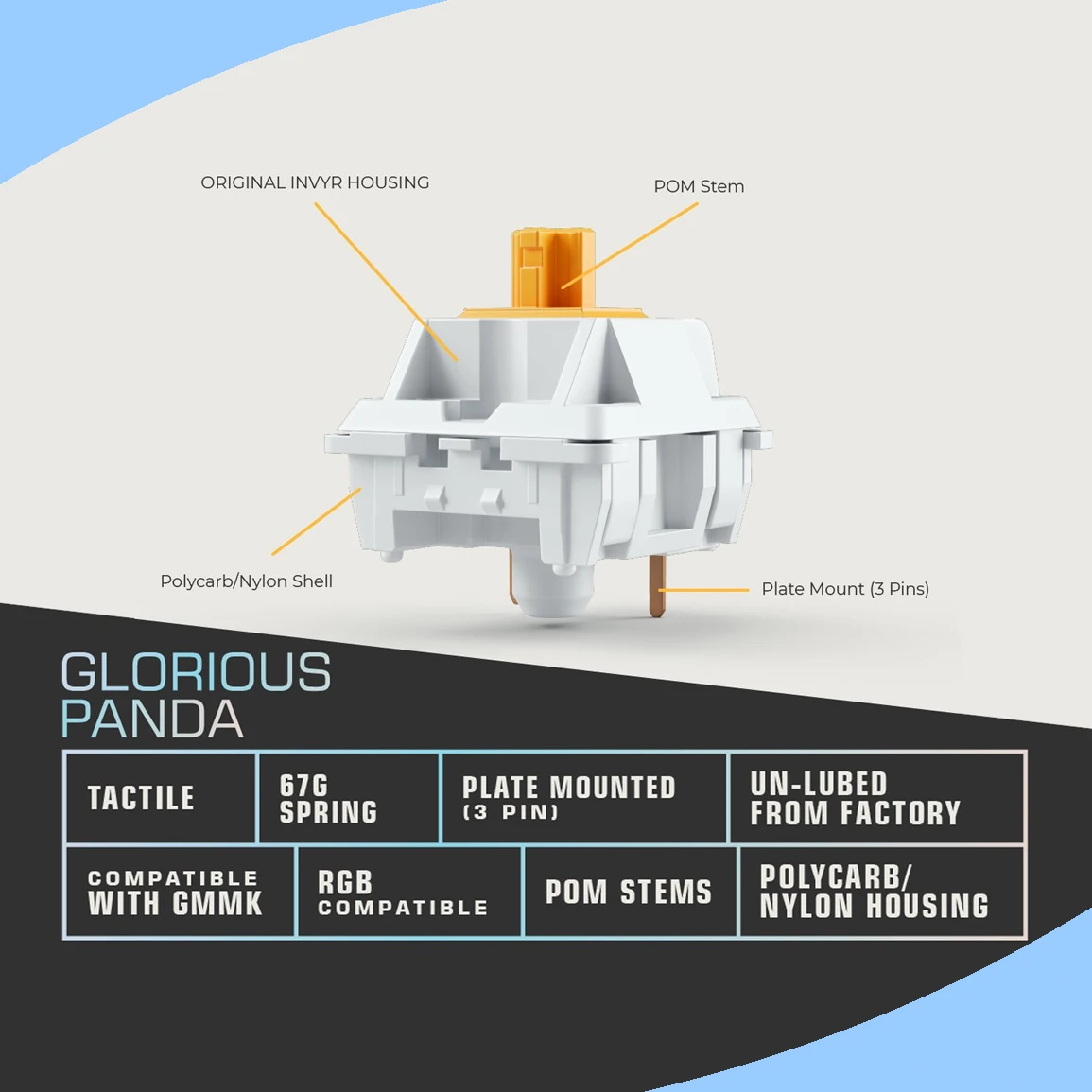

Glorious Panda Teardown

Top Shell -- Created from original Invyr tooling, modified to incorporate Glorious branding, made with premium grade polycarbonate
Stem -- New and improved Glorious stem that provides less pretravel for the tactile bump to occur and a stronger upward stroke, composed of POM sourced from Japan
Spring -- 67-gram stainless steel spring with nickel plating, sourced from Korea
Leaf -- Premium grade copper, sourced from Japan
Bottom Shell -- Created from original INVYR tooling using premium Nylon PA66, 3-pin

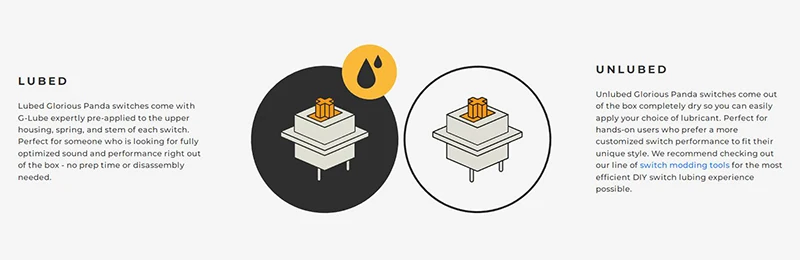

Pre-Lubed and UNLUBED

Lubricated switches provide an enhanced sound and feel compared to their unlubed counterparts. Lubed Glorious Pandas come with G-Lube expertly pre-applied to the upper housing, spring, and stem of each switch. Perfect for someone who is looking for fully optimized performance right out of the box - no prep time or disassembly needed.

Unlubed Glorious Panda switches come out of the box completely dry so you can easily apply your choice of lubricant. Perfect for hands-on users who prefer a more customized switch performance to fit their unique style. We recommend checking out our line of switch modding tools for the most efficient DIY switch lubing experience possible.

Other Switches also compatible

Specification:

Cable type: Type-C

Buttons: Turbo Home Select Start L3 R3

Panel Material: Aluminium and Acrylic

Panel Size: 196 x 123mm

Product Height: 17mm / 18.5mm(With anti-slip pads)

Product Weight: 0.5kg

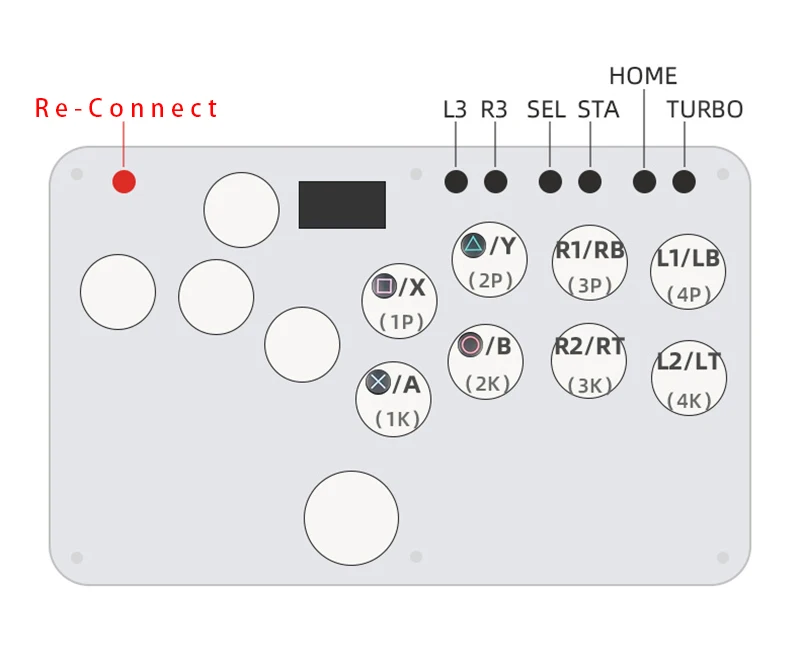

Button Functions:

LCD Displays:

Input Models:

To select input mode, hold one of the following buttons when plugging in your controller:
· 1P - PS3/Dinput
· 1K - Nintendo Switch
· 2K - PC/XInput

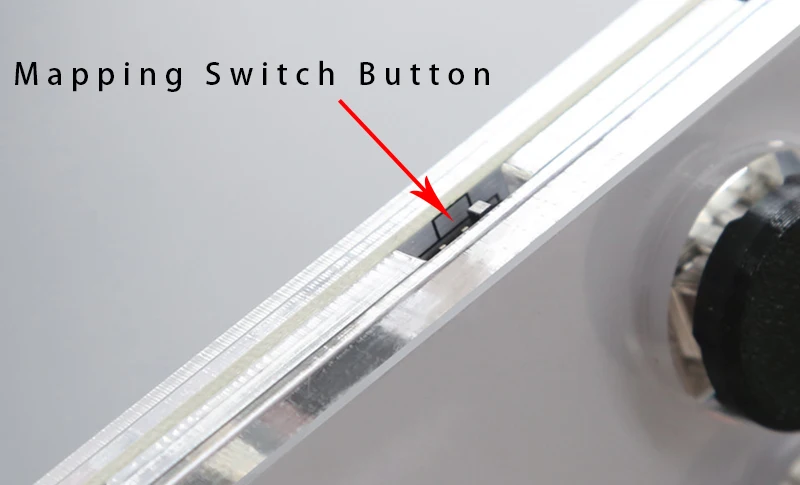

Mapping Switch Button

Can help you change the button to be a mixbox or hitbox.

Direction Models:

To select the active d-pad mode, while the controller is plugged in press:
●DP(Normal D-pad operation): SELECT + START + DOWN
● LS(Left analog stick emulation): SELECT + START + LEFT
● RS(Right analog stick emulation): SELECT + START + RIGHT

SOCD Models:

● Up Priority: START + HOME + ↑, ↑ + ↓ = ↑,← + →
= Neutral
● Neutral Priority: START + HOME +↓, ↑ + ↓ = Neutral ,← + → = Neutral
● Last Input Priority: START + HOME +←.

Turbo Model:

To select Turbo mode, hold one of the following buttons and TURBO button:

● Available Button - 1P 2P3P 4P 5P 1K 2K 3K 4K
● Speed - 1~60 clicks per minutes

Hold Turbo button, and click UP button to speed up, and click DOWN button to lower the speed.

Simple Test:

This Listing Include:

1pcs SallyBox
1pcs Type-c Cable
