JY-916 Multi Coin Acceptor Token Selector Coin Mech support 1-6 kinds of coins for Arcade Kiosk Vending Machines

Chrome Front Plate Advanced CPU Multi Coin Selector Coin Acceptor for Mechanism Vending machines, Arcade Game, Message chairs, and other self–management systems up to 6 types coins

JY-916 is a multi coin selector , can accept up to 6 kinds of different coins at the same time. This type of coin selector is widely used in Vending machines, Arcade Games, Message chairs, and other self–management systems. JY-916 is mainly based on material, weight and size to identify coins. We use the most up to date algorithm to design software, therefore JY-916 is very stable and accurate even when environment changes, such as temperature, humidity etc… In order to increase the accuracy, we suggest different version of coins use different channel to set up.

Features:

(1)Capable of accepting all worldwide Coins and Tokens.
(2)Intelligent CPU software control, and high accuracy.
(3)Self-programming without PC.
(4)Accept 1~6 different kinds of coins at the same time.
(5)Free to set up pulses' output.
(6)Prevent not only electric shock but also electromagnetic interference.
(7)Automatic self-test for problems.

Specifications:

Item: JY-916 Multi Coin Acceptor
Coin Diameter: 15~30 mm
Coin Thickness: 1.8~3.0mm
Voltage: DC 12V ±10%
Current: 350mA ±5%
Accuracy rate of identification: 99%
Temperature: -15°C~+75°C
Atmospheric pressure: 86Kpa—106Kpa
Signal Output: Pulse
Pluse Witdth: 20ms/40ms/100ms
Speed: ≤0.6s

Size:

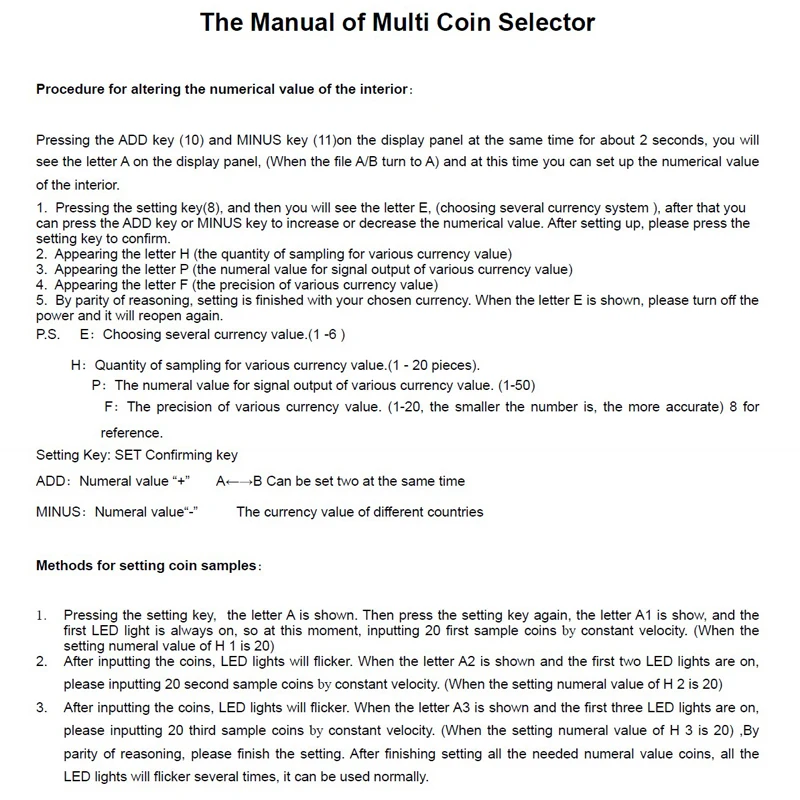

Manual:

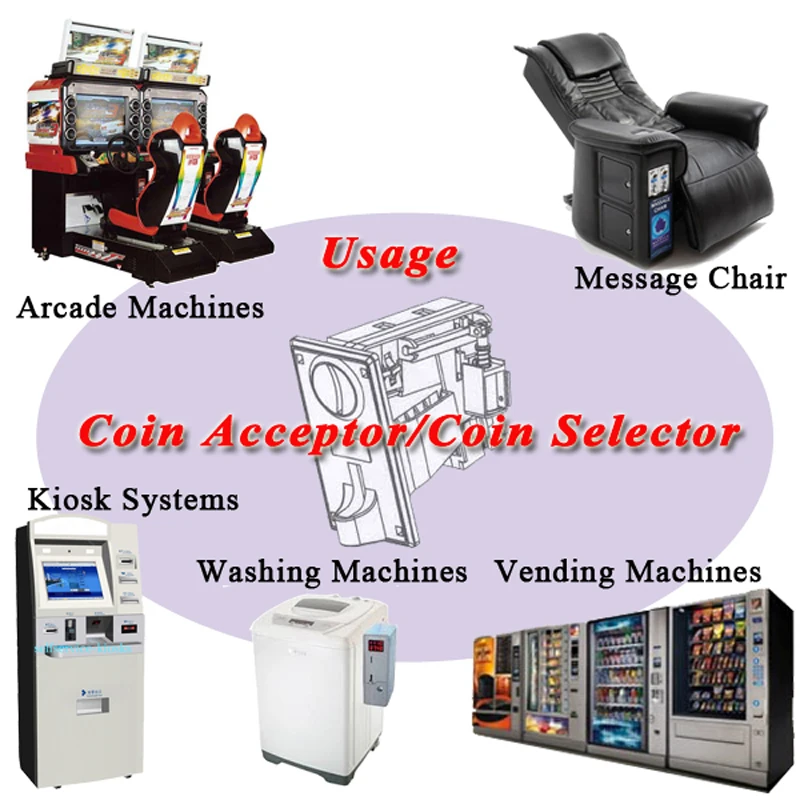

Application Area:

Our coin acceptor widely used in coin kiosk, car washing machine, TV, message chair, cloth dryer, cyber coffee, Laundromat, laundry,computer ,amusement machine , arcade machine etc.

This Listing Including:

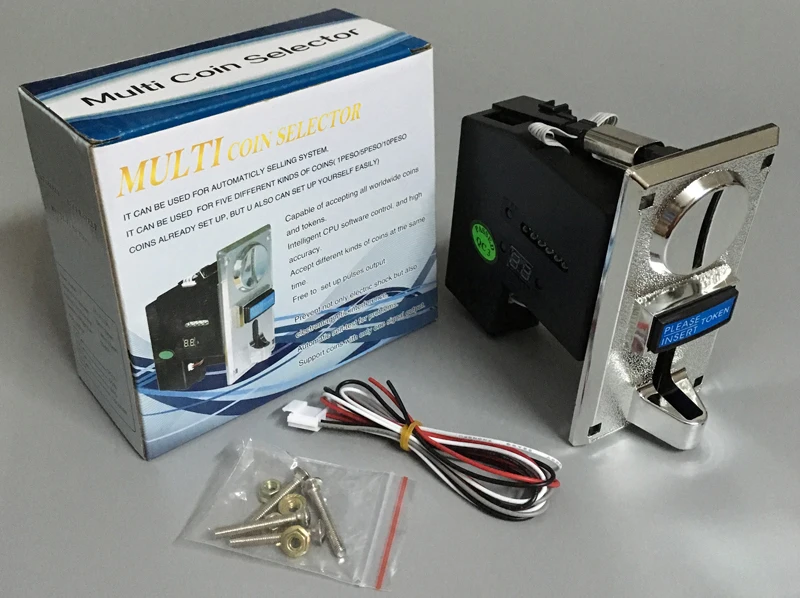

One pcs JY-916 Multi Coin Acceptor
