JY-17B 3-digits timer board coin operated Timer Control Board power Supply for coin acceptor selector device washing machines
JY-17B 3-digits timer board coin operated Timer Control Board power Supply for coin acceptor selector device washing machines
Couldn't load pickup availability
JY-17B 3-digits timer board coin operated Timer Control Board power Supply for coin acceptor selector device washing machines
*Newest version of software
*This is used for power supply time control
*Can be used with a coin acceptor or other devices that can output pulse signals.and you can set up for what values to start your machine
*Suitable for any kinds of automatic control devices such as gaming machines, massage chairs, shoe polishers, washing machines, chargers, dryers, and PCs.
Feature:
(1)Controls electrical devices ( TV, Massage chair..) power.
(2)Suitable for public place location and most of electric device control, for example:PCs,washing machines,dryers,massage chairs,chargers,etc.
(3)AC 1250W/DC 500W electrical relay capacity.
(4)Digital timer: rate adjustable by owner through three simple push button switch.
(5)The time can be set by seconds or by minutes.
maximum time : there are 2 version of software
•99:00 (minutes:seconds) or
•99:00 (hours:minutes)
(6)Control time by seconds-minutes or minutes-hours.
(7)Accumulate time when signal inputs.
(8)Timer control board with coin acceptor operates with 12V DC power.and has the LED to show the Time left.

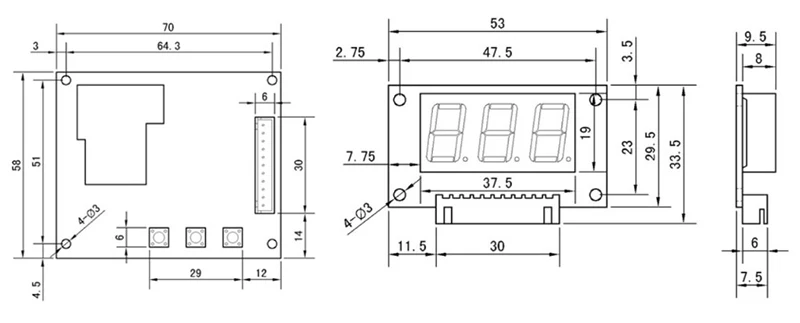

Size:

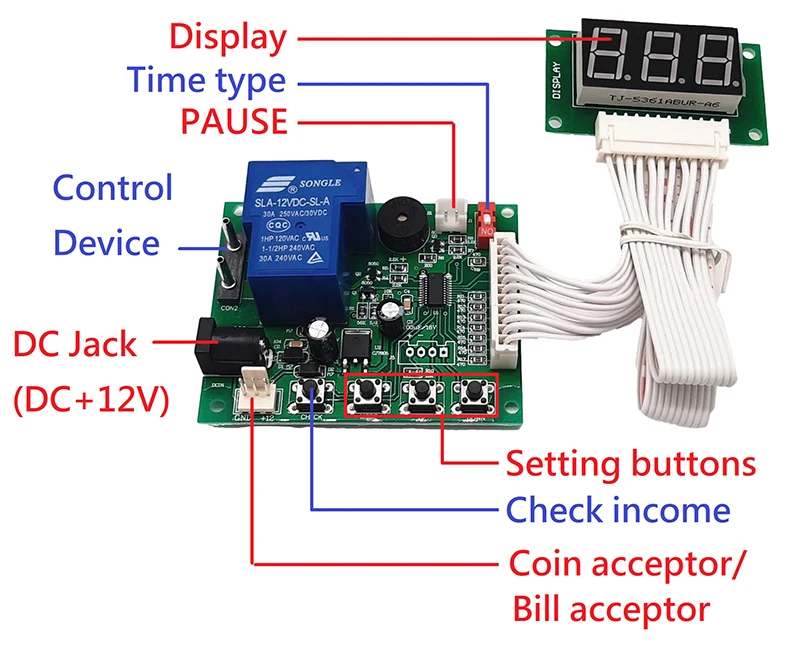

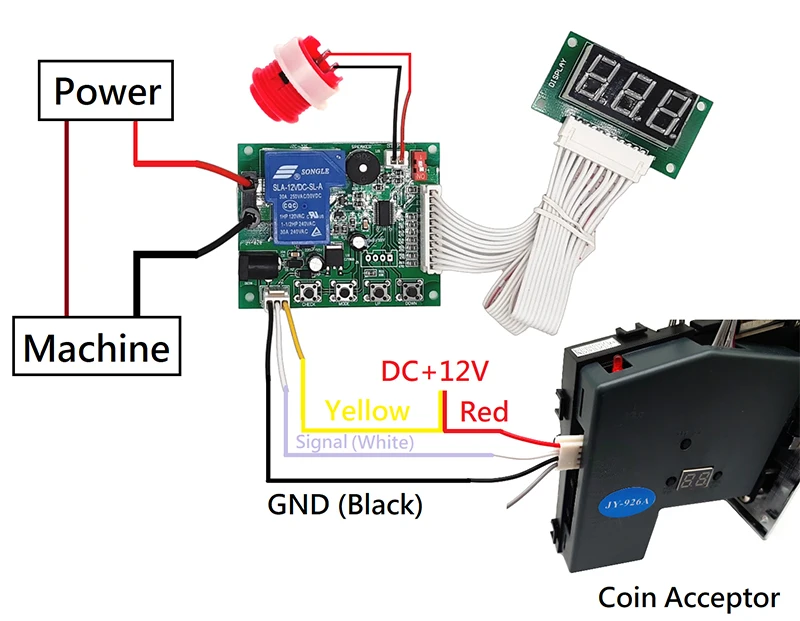

Connection:

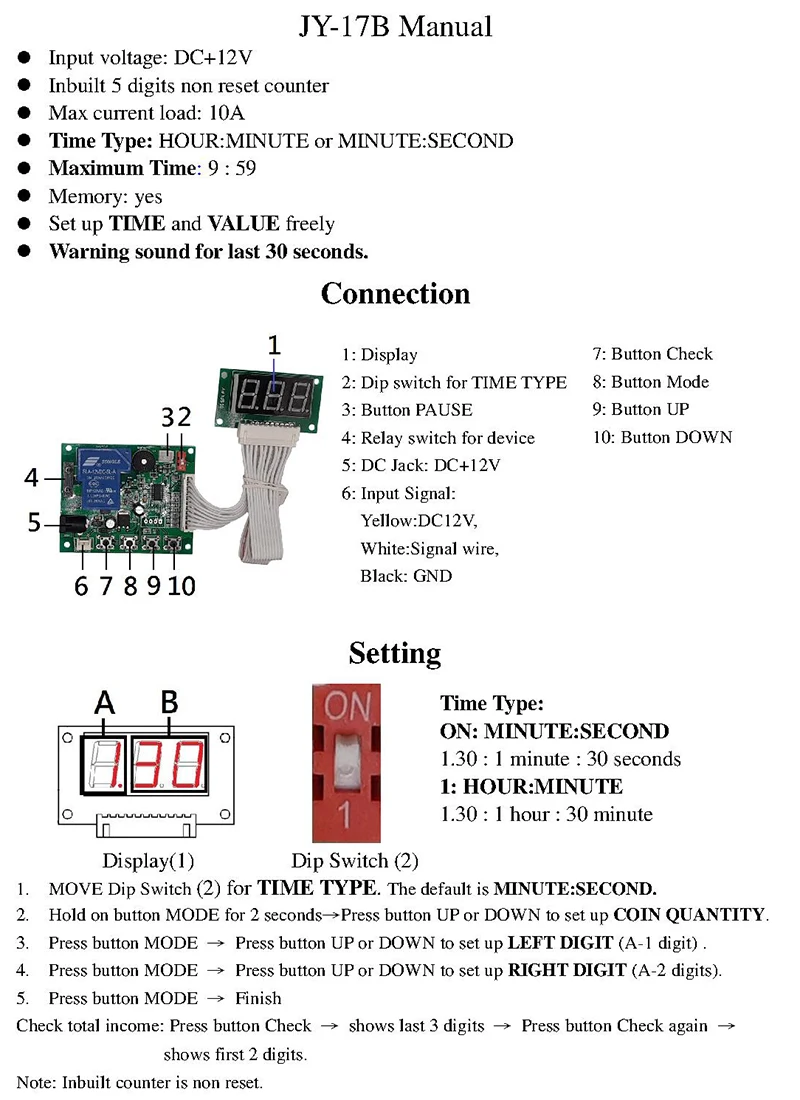

Manual:
