DC 24V coin motor coin hopper coin change coin dispenser for arcade slot machine coin change vending machine amusement machine

Brand: Sinoarcade

Product Code:

Availability:In stock

$48.99 $49.99 48.99

6 holes 220V 24V coin motor coin hopper coin dispensor coin dispensing machine with motor US Plug for arcade slot machine coin change vending machine

Feature:

New and innovative through hole hopper.
Compatible with other popular hopper devices,
Perfect for many applications including Amusement, Vending, Gaming, Parking and Change machines.
Constructed of extremely durable, wear-resistant plastic along with state-of-the-art electronics.
Features high speed operation and expandable hopper capacity.
Standard parallel interface and 3-pin connector.
Coin size range 22.00- 26.50 mm.
Thickness 1.50- 3.00 mm .
Supplied with quick-fit release plate.
Payout speed of up to 6 coins per second.
Reliable through hole coin disk design.
Clean design - no external wires run for level sensors.
Integrated fall tube for simple dual hopper cabinet construction.
Supplied complete with mounting bracket. 24V/220v power supply available.
Continuous opto-sensor check.
Low level sensor and anti-jam feature

Specification:

Standard 1000 coins(Φ 25mm) capacity
Quick pay out speed: 400 coins per minute.
Coins per second: 7 Coin
Size Range: 22.00mm - 26.50mm
Coin Thickness Range: 1.50mm - 3.00mm
Min. time between coins: 100mS
Min. time obstructs optics: 30mS Payout position: 4 sides
Payout signal: Open collector-active low 25mA-35V

Size: mm

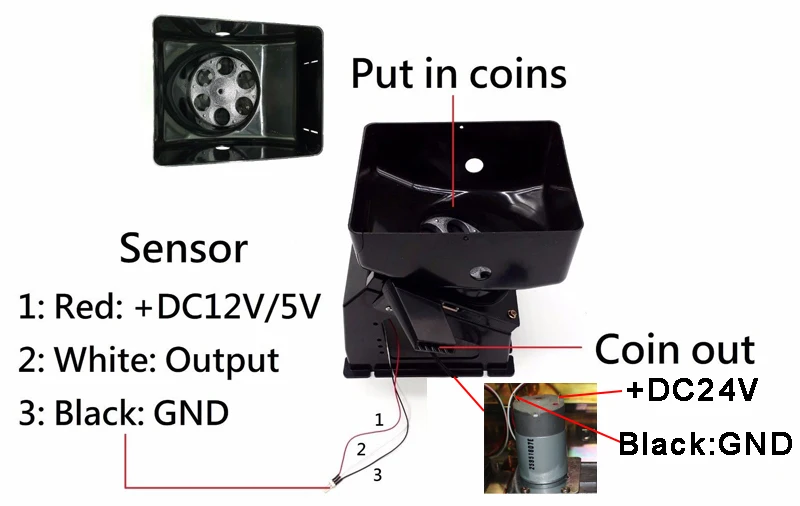

Connection for DC +24V Coin Hopper:

This Listing Including:

One pcs slot machine coin hoppe for coin charger machine vending machine

We appreciate your business
